Cheng Home High Air Pressure CHA4012 CPU Cooler Fan

Cheng Home High Air Pressure CHA4012 CPU Cooler Fan

Product Details:

Place of Origin: China
Brand Name: Cheng Home
Certification: UL TUV
Model Number: CHA4012XXX-MX

Payment & Shipping Terms:

Minimum Order Quantity: 2000 pcs
Price: USD1.00-8.00 per piece
Packaging Details: cartons on pallets
Delivery Time: 4-6 weeks
Payment Terms: T/T
Supply Ability: 200-400K pieces per month
Get Best Price Contact Now

Detail Information

Material: PBT Samples: Available
Option: Signal Output Bearing: Ball Bearing Or Sleeve Bearing
Model: CHA4012XXX-MX Lead Wire:: AWG26 "+" Red "-" Black Standard UL 1007
High Light:

Cheng Home CHA4012 CPU Fan

,

CHA4012 CPU Cooler Fan

,

Cheng Home CPU Cooler Fan

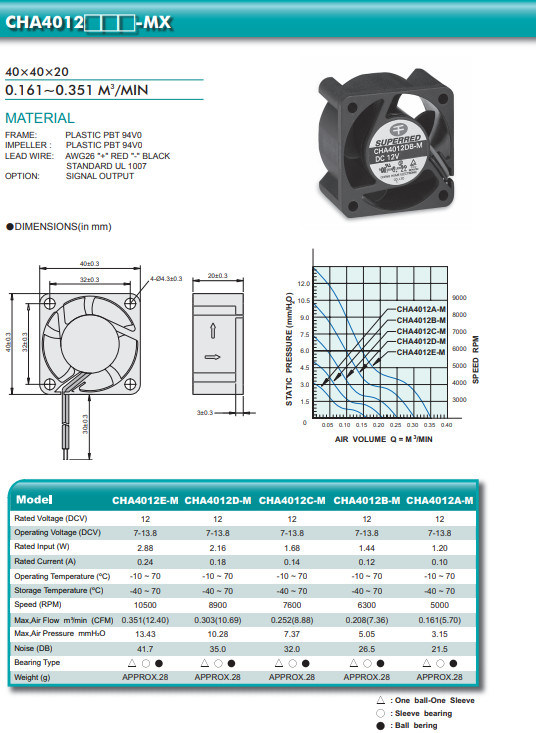

Product Description

CHA4012XXX-MX
40X40X20 mm

0.161-0.351 m3/min



Material
Frame: Plastic PBT 94V0
Impellen Plastic PBT 94V0
Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007
Option: Signal Output
Bearing: Ball bearing or Sleeve bearing



Cheng Home High Air Pressure CHA4012 CPU Cooler Fan 0



Model Rated Voltage (DCV) Operating Voltage (DCV) Rated input (W)  Rated Current (A) Operating Temperature Storage Temperature CQ Speed (RPM) Max, Air Flow (CFM) Max, Aire Pressure (mm HQ) Noise (DB) Bearing Type Weight (g)
CHA4012A 12 7-13.8 1.2 0.1 -10-70 -40-70 5000 S.7 3.15 21.5 B 28
12 7-13.8 1.2 0.1 -10-70 -40*70 5000 5.7 3.15 21.5 S 28
12 7-13.8 12 0.1 -10-70 -40-70 5000 5.7 3.15 21.5 SB 28
CHA4012B 12 7-13.8 1.44 0.12 -10-70 -40-70 6300 7.36 S.05 26.5 B 28
12 7-13.8 1.44 0.12 -10-70 -40-70 6300 7.36 5.05 26.5 B 28
CHA4024B 24 12-26.4 1.92 0.08 -10-70 •40-70 6300 7.36 5.05 26.5 S 28
CHA4012C 12 7-138 1.68 0.14 -10-70 -40-70 7600 888 7.37 32 B 28
12 7-13.8 1.68 0.14 -10-70 -40-70 7600 8.88 7.37 32 B 28
12 753.8 1.68 0.14 -10-70 -40-70 7600 8.88 7.37 32 B 28
CHA4012D 12 7-13.8 2.16 0.18 -10-70 -40-70 8900 10.69 10.28 35 B 28
12 7-13.8 2.16 0.18 -10-70 -40-70 8900 10.69 10.28 35 B 28
12 7-13.8 2.16 0.18 -10-70 -40*70 8900 10.69 10.28 35 S 28
12 7-13.8 2.16 0.18 -10-70 -40-70 8900 10.69 10.28 35 B 28
CHA4012E 12 7-13.8 2.88 0.24 •10-70 -40-70 10500 12.4 13.43 41.7 B 28
12 7-13.8 2.88 024 -10-70 -40-70 10500 12.4 13.43 41.7 B 28
12 7-13.8 2.88 0.24 -10-70 -40-70 10500 12.4 13.43 41.7 B 28
12 7-13.8 2.88 0.24 •10-70 -40-70 10500 12.4 13.43 41.7 B 28
12 7-13.8 288 0.24 -10-70 -40-70 10500 12.4 13.43 41.7 S 28



About us

Everrich Electronic(Dong Guan)Co.,Ltd, a subsidiary of Cheng Home Electronics Co.,Ltd, is the Taiwan based enterprise which is specialized in designing and manufacturing of DC brushless fans and motors. The company was established in Oct.1985. It has been 30 years experience of professional design and manufacture of DC fans, motors. We use advanced auto production equipment and testing machines,and we have senior professional & manager and technique power is strong.

We have continuously made all series of DC brushless fans from size 25mm to 172mm,and thickness from 6mm to 50mm. We would like to establish a partnership with each customer by developing any kind of fan and motor for customers special needs in PCs,desktop computers,telecom,car,projector,copy machine,fragrance lamp and industrial,medical,home application and other equipments.

We produce high efficiency,quality and stability. Our fans low noise,high airflow,long life.We have passed many domestic / international professional certificate such as CCC,UL,TUV. The product are sold to USA, Japan, Korea, South-east Asia and Hong Kong etc. around the world. Besides, we have a cooperation with world famous companies. In order to always keep in the leading position in the world, we continually import equipment,develop new product and create new market.
