CHA3005 ball bearing 0.25W 0.05A CPU Cooler Fan
Product Details:
| Place of Origin: | China |
| Brand Name: | Cheng Home |
| Certification: | UL TUV |
| Model Number: | CHA3005XXX-XX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 pcs |
|---|---|
| Price: | USD1.00-8.00 per piece |
| Packaging Details: | cartons on pallets |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 200-400K pieces per month |
|
Detail Information |
|||
| Material: | PBT | Samples: | Available |
|---|---|---|---|
| Option: | Signal Output | Bearing: | Ball Bearing Or Sleeve Bearing |
| Electric Current Type: | DC | Frame:: | Plastic PBT 94V0 |
| High Light: | 0.05A CPU Cooler Fan,0.25W CPU Cooler Fan,CHA3005 CPU Cooler Fan |
||

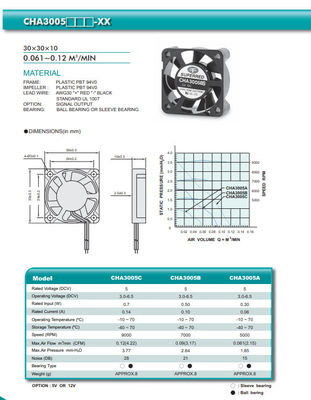

Product Description
A40XX-XX
30x30X10 mm
0.061-0.12 m3/min
Material
Frame: Plastic PBT 94V0
Impellen Plastic PBT 94V0
Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007
Option: Signal output
| Model | Rated Voltage (DCV) | Operating Voltage (DCV) | Rated input (W) | Rated Current (A) | Operating Temperature (°C) | Storage Temperature (°Q | Speed (RPM) | May Air Flow (CFM) | Max. Aire Pressure (mmH20) | Noise (DB) | Bearing Type | Weight (g) |
| CHA3005A | 12 | 3-6.5 | 0.25 | 0.05 | -10-70 | •40-70 | 5000 | 2.15 | 1.85 | 15 | SB | 8 |
| CHA3012A | 8-13.2 | 0.48 | 0.04 | -10-70 | -40-70 | 5000 | 2.15 | 1.85 | 15 | SB | ||
| 12 | 7-13.2 | 0.48 | 0.04 | -10-70 | -40-70 | 5000 | 2.15 | 1.85 | 15 | B | 8 | |
| 12 | 10-13.2 | 0.48 | 0.04 | -10-70 | -40-70 | 5000 | 2.15 | 1.85 | 15 | S | ||
| CHA3005B | 5 | 3-6.5 | 0.5 | 0.1 | -10-70 | •40-70 | 7000 | 3.17 | 2.64 | 21 | SB | 8 |
| CHA3012B | 12 | 7-13.2 | 0.84 | 0.07 | -10-70 | -40-70 | 7000 | 3.17 | 2.64 | 21 | S/SB | 8 |
| 12 | 6-13.2 | 0.84 | 0.07 | -10-70 | -40-70 | 7000 | 3.17 | 2.64 | 21 | SB | 8 | |
| CHA3005C | 5 | 3-6.5 | 0.7 | 0.14 | •10-70 | •40-70 | 9000 | 4.22 | 3.77 | 28 | S | 8 |
| 5 | 33-6.5 | 0.7 | 0.14 | -10-70 | -40-70 | 9000 | 4.22 | 3.77 | 28 | SB/B | 8 | |
| CHA3012C | 12 | 7-13.2 | 1.2 | 0.1 | -10-70 | -40-70 | 9000 | 422 | 3.77 | 28 | SB | 8 |
