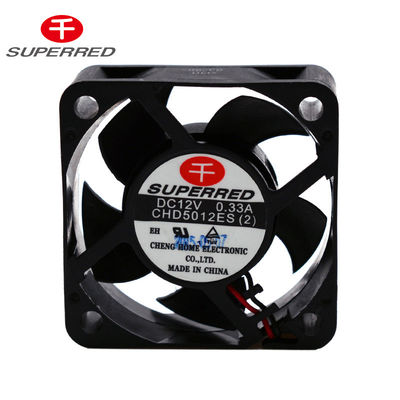

Thermoplastic 8200RPM 50x20mm 3d Printer Part Cooling Fan
Product Details:
| Place of Origin: | China |
| Brand Name: | Cheng Home |
| Certification: | UL TUV |
| Model Number: | D50XX-XX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 pcs |
|---|---|
| Price: | USD1.00-8.00 per piece |
| Packaging Details: | cartons on pallets |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 200-400K pieces per month |
|
Detail Information |
|||
| Material: | PBT | Samples: | Available |
|---|---|---|---|
| Option: | Signal Output | Bearing: | Ball Bearing Or Sleeve Bearing |
| Model: | D50XX-XX | Name: | DC Brushless Fans |
| High Light: | 50x20mm 3d Printer Part Cooling Fan,8200RPM 3d Printer Part Cooling Fan,Thermoplastic 3d Printer Part Cooling Fan |
||
Product Description
D50XX-XX
50x50x20 mm
0.360〜0.656 m3/min
Material
Frame: Thermoplastic PBT of UL 94V-O
Impellen Thermoplastic PBT of UL 94V-O
Bobbin: Thermoplastic PBT of UL 94V-O
Lead Wire: AWG26, Red Wire Positive(+) Black wire Negative(-)
| Model | Rated Voltage (DCV) | Operating Voltage (DCV) | Rated input (W) | Rated Current (A) | Operating Temperature (°Q | Storage Temperature | Speed (RPM) | Max, Air Flow (CFM) | Mav Aire | Pressure (mmHQ) | Noise (DB) | Bearing Type | Weight (g) |
| CHD5012A | 12 | 7-13.2 | 1.2 | 0.1 | -10-70 | -40-70 | 4500 | 12.71 | 33 | 25.6 | B/S/SB | 40 |
| CHD5012B | 12 | 7-132 | 1.44 | 0.12 | -10-70 | -40-70 | 5400 | 1526 | 4.75 | 31.2 | . | 40 |
| CHD5012C | 12 | 7-132 | 2.16 | 0.18 | -10-70 | -40-70 | 6400 | 18.08 | 6.67 | 35.7 | B/S | 40 |
| CHD5O12D | 12 | 7-13.2 | 2.88 | 024 | -10-70 | -40-70 | 7300 | 20.62 | 8.68 | 39.6 | - | 40 |
| CHD5024D | 24 | 12-26.4 | 336 | 0.14 | -10-70 | -40-70 | 7300 | 20.62 | 8.68 | 39.6 | 40 | |
| CHD5O12E | 12 | 7-13.2 | 3.96 | 033 | -10-70 | -40-70 | 8200 | 23.17 | 10.95 | 43.1 | B/S | 40 |
About us
Everrich Electronic(Dong Guan)Co.,Ltd, a subsidiary of Cheng Home Electronics Co.,Ltd, is the Taiwan based enterprise which is specialized in designing and manufacturing of DC brushless fans and motors. The company was established in Oct.1985. It has been 30 years experience of professional design and manufacture of DC fans, motors. We use advanced auto production equipment and testing machines,and we have senior professional & manager and technique power is strong.
We have continuously made all series of DC brushless fans from size 25mm to 172mm,and thickness from 6mm to 50mm. We would like to establish a partnership with each customer by developing any kind of fan and motor for customers special needs in PCs,desktop computers,telecom,car,projector,copy machine,fragrance lamp and industrial,medical,home application and other equipments.
We produce high efficiency,quality and stability. Our fans low noise,high airflow,long life.We have passed many domestic / international professional certificate such as CCC,UL,TUV. The product are sold to USA, Japan, Korea, South-east Asia and Hong Kong etc. around the world. Besides, we have a cooperation with world famous companies. In order to always keep in the leading position in the world, we continually import equipment,develop new product and create new market.
