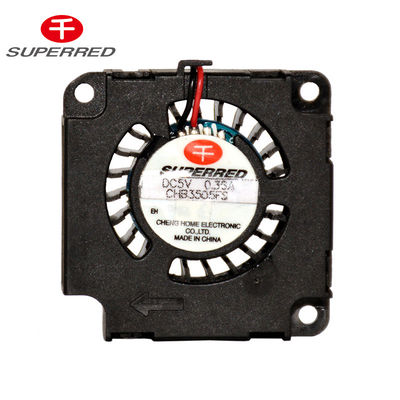

High Air Pressure Blower 35X7mm DC5/12V 3d Printer Cooling Fan
Product Details:
| Place of Origin: | China |
| Brand Name: | Cheng Home |
| Certification: | UL TUV |
| Model Number: | B3505XX-XX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 pcs |
|---|---|
| Price: | USD1.00-8.00 per piece |
| Packaging Details: | cartons on pallets |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 200-400K pieces per month |
|
Detail Information |
|||
| Material: | PBT | Samples: | Available |
|---|---|---|---|
| Option: | Signal Output | Bearing: | Ball Bearing Or Sleeve Bearing |
| Name: | 3D Printer Cooling Fan | Model: | B3505XX-XX |
| High Light: | Air Pressure 7mm 3d Printer Cooling Fan,35X7mm 3d Printer Cooling Fan,35X7mm Printer Cooling Fan |
||
Product Description
DC burshless fans with High air flow and high air pressure are mainly used for server
B3505XX-XX
35X35X7 (BLOWER) mm
0.014 〜0.021 m3/min
Material
Frame: Plastic PBT 94V0
Impellen Plastic PBT 94V0
Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007
Option: Signal output
Bearing: Ball bearing or Sleeve bearing
| Model | Rated Voltage (DCV) | Operating Voltage (DCV) | Rated innut | Rated CI input | Operating Temperature (°C) | Storage Temperature (°C) | Speed (RPM> | Max, Air Flow (CFM) | Max. Aire Pressure (mmHQ) | Noise (DB) | Bearing Type | Weight I (g) |
| CHA3505A | 5 | 3-6.5 | 0.25 | 0.0S | -10-70 | -40-70 | 6000 | 0.5 | 2.55 | 21 | SB | 22 |
| CHA3512B | 5 | 4-6.5 | 0.3 | 0.06 | -10-70 | -40-70 | 8000 | 0.6 | 4.62 | 25 | SB | 22 |
| 5 | 3*6.5 | 0.3 | 0.06 | -10-70 | -40-70 | 8000 | 0.6 | 4.62 | 25 | SB | 22 | |
| 12 | 6-132 | 0.816 | 0.068 | -10-70 | -40-70 | 8000 | 0.6 | 4.62 | 25 | SB | 22 | |
| CHA3505C | 5 | 3-6.5 | 035 | 0.07 | -10-70 | -40-70 | 10000 | 0.75 | 748 | 29 | S8/S | 22 |
About us
Everrich Electronic(Dong Guan)Co.,Ltd, a subsidiary of Cheng Home Electronics Co.,Ltd, is the Taiwan based enterprise which is specialized in designing and manufacturing of DC brushless fans and motors. The company was established in Oct.1985. It has been 30 years experience of professional design and manufacture of DC fans, motors. We use advanced auto production equipment and testing machines,and we have senior professional & manager and technique power is strong.
We have continuously made all series of DC brushless fans from size 25mm to 172mm,and thickness from 6mm to 50mm. We would like to establish a partnership with each customer by developing any kind of fan and motor for customers special needs in PCs,desktop computers,telecom,car,projector,copy machine,fragrance lamp and industrial,medical,home application and other equipments.
We produce high efficiency,quality and stability. Our fans low noise,high airflow,long life.We have passed many domestic / international professional certificate such as CCC,UL,TUV. The product are sold to USA, Japan, Korea, South-east Asia and Hong Kong etc. around the world. Besides, we have a cooperation with world famous companies. In order to always keep in the leading position in the world, we continually import equipment,develop new product and create new market.
