Product Details:

Place of Origin: China
Brand Name: Cheng Home
Certification: UL TUV
Model Number: A2506-XX

Payment & Shipping Terms:

Minimum Order Quantity: 2000 pcs
Price: USD1.00-8.00 per piece
Packaging Details: cartons on pallets
Delivery Time: 4-6 weeks
Payment Terms: T/T
Supply Ability: 200-400K pieces per month
Get Best Price Contact Now

Detail Information

Material: PBT Samples: Available
Option: Signal Output Bearing: Ball Bearing Or Sleeve Bearing
High Light:

SGS 3D Printer Cooling Fan


11db 3D Printer Cooling Fan


SGS Printer Cooling Fan

Product Description

SGS UL certification low noise plastic brushless mini 3D printer cooler dc fan

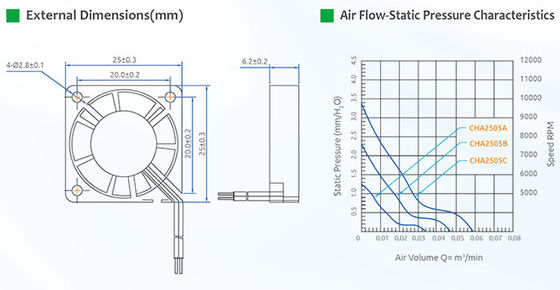

25x25x6.2 mm

0.034-0.084 m3/min


Frame: Plastic PBT 94V0
Impellen Plastic PBT 94V0
Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007
Option: Signal output




Model Rated Voltage (DCV) Operating Voltage (DCV) Rated input (W) Rated I Ci trronf Operating Temperature co Storage Temperature (°Q Speed (RPM) Max. Air Flow (CFM) Max, Aire Pressure (mmH20) Noi" (DB) Bearing Type Weight (g)
CHA2505A 5 3-6.5 0.25 0.05 -10-70 40-70 6500 122 125 11 SB/S 6
CHA2512A 12 9-13.2 0.48 0.04 -10-70 40~70 6500 122 125 11 SB 6
CHA2512B 12 10-13.2 0.6 0.05 -10-70 40-70 8500 1.65 23 19 SB 6
CHA2505C 5 3-6.5 0.35 0.07 -10-70 40-70 10500 2.08 3.37 255 SB 6
CHA2512C 12 6532 0.72 0.06 -10-70 40*70 10500 2.08 3.37 25.5 SB 6
CHA2505ESF 5 2.5-5.S 125 0.25 -10-70 40-70 15000 2.97 6.88 33.25 FDB 6

Low Noise 11db Plastic SGS 3D Printer Cooling Fan 0

About us

Everrich Electronic(Dong Guan)Co.,Ltd, a subsidiary of Cheng Home Electronics Co.,Ltd, is the Taiwan based enterprise which is specialized in designing and manufacturing of DC brushless fans and motors. The company was established in Oct.1985. It has been 30 years experience of professional design and manufacture of DC fans, motors. We use advanced auto production equipment and testing machines,and we have senior professional & manager and technique power is strong.

We have continuously made all series of DC brushless fans from size 25mm to 172mm,and thickness from 6mm to 50mm. We would like to establish a partnership with each customer by developing any kind of fan and motor for customers special needs in PCs,desktop computers,telecom,car,projector,copy machine,fragrance lamp and industrial,medical,home application and other equipments.

We produce high efficiency,quality and stability. Our fans low noise,high airflow,long life.We have passed many domestic / international professional certificate such as CCC,UL,TUV. The product are sold to USA, Japan, Korea, South-east Asia and Hong Kong etc. around the world. Besides, we have a cooperation with world famous companies. In order to always keep in the leading position in the world, we continually import equipment,develop new product and create new market.
