Plastic PBT 94V0 Server Cooling Fan With Sleeve Bearing
Product Details:
| Place of Origin: | China |
| Brand Name: | Cheng Home |
| Certification: | UL TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2k |
|---|---|
| Price: | USD1-USD8 per unit |
| Packaging Details: | carton on pallet |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 200k-400k |
|
Detail Information |
|||
| Material: | Black | ||
|---|---|---|---|
| High Light: | Plastic PBT 94V0 Server Cooling Fan,Server Cooling Fan With Sleeve Bearing |
||
Product Description

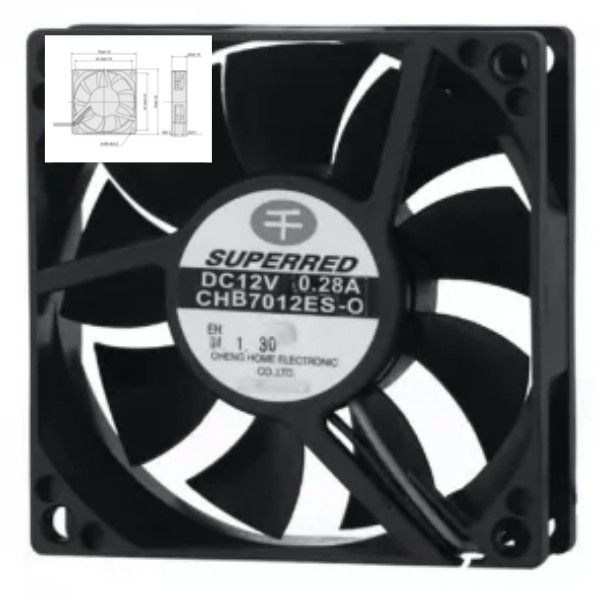

Server Cooling Fan
Product Description
B7012-XX
70x70x20 mm
0.513-1.437 m3/min
Material
Frame: Plastic PBT 94V0
Impellen Plastic PBT 94V0
Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007
Option: Signal output
Bearing: Ball bearing or Sleeve bearing
| Model | Rated Voltage (DCV) | Operating Voltage (DCV) | Rated input (W) | Rated Current (A) | Operating Temperature | Storage Temperature (°Q | Speed (RPM) | Max, Air Flow (CFM) | Max, Aire Pressure | Noise (DB) | Bearing Type | Weight I (g) |
| CHB7012A | 12 | 7-132 | 1.08 | 0.09 | -10-70 | -40-70 | 2100 | 18.13 | 1.74 | 22.7 | 55.8 | |
| CHB7012B | 12 | 7-132 | 1.2 | 0.1 | -10-70 | -40-70 | 2500 | 21.12 | 2.35 | 24.7 | 55.8| | |
| CHB7012C | 12 | 7-132 | 1.68 | 014 | -10-70 | •40-70 | 3000 | 25,9 | 3.47 | 29 | 55.8 | |
| CHB7012D | - | 7-132 | 2.4 | 0.2 | -10-70 | -40-70 | 3700 | 32.84 | 5.15 | 36.8 | s | 55.8 |
| CHB7012E | 12 | 7-132 | 3.36 | 028 | -10-70 | -40-70 | 4300 | 3633 | 6.4 | 42 | SB | 55.8 |
| CHB7012F | 12 | 7-132 | 5.16 | 043 | -10-70 | -40-70 | 5000 | 4224 | 8.65 | 45.3 | SB | 55.8 |
| CHB7012G | 12 | 7-132 | 6 | 0.5 | -10-70 | -40-70 | 5400 | 45.62 | 10.09 | 47 | 55.8 | |
| CHB7012H | 12 | 7*132 | 8.4 | 07 | -10-70 | -40-70 | 6000 | 50.69 | 12.46 | 49.3 | 55.8 |
