• 92x20mm Brushless DC12V/24V PC Fan For Server
  • 92x20mm Brushless DC12V/24V PC Fan For Server
  • 92x20mm Brushless DC12V/24V PC Fan For Server

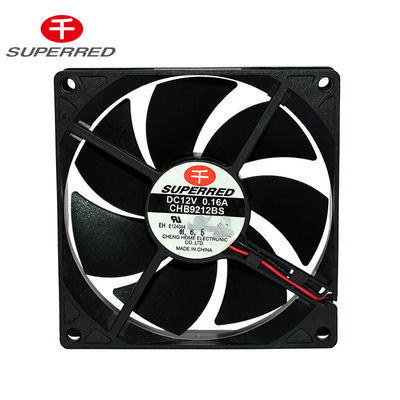

92x20mm Brushless DC12V/24V PC Fan For Server

92x20mm Brushless DC12V/24V PC Fan For Server

Product Details:

Place of Origin: China
Brand Name: Cheng Home
Certification: UL TUV
Model Number: B92XX-XX

Payment & Shipping Terms:

Minimum Order Quantity: 2000 pcs
Price: USD1.00-8.00 per piece
Packaging Details: cartons on pallets
Delivery Time: 4-6 weeks
Payment Terms: T/T
Supply Ability: 200-400K pieces per month
Get Best Price Contact Now

Detail Information

Material: PBT Samples: Available
Option: Signal Output Bearing: Ball Bearing Or Sleeve Bearing
Model: B92XX-XX Name: Brushless PC Fan
High Light:

92x20mm Brushless PC Fan


71g Brushless PC Fan


CHB9212A Brushless PC Fan

Product Description

DC burshless fans with High air flow and high air pressure are mainly used for server such as 120*38 92*38, 80*38, 60*38



92x92x20 mm

0.905.63 m3/min


Frame: Plastic PBT 94V0
Impellen Plastic PBT 94V0
Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007
Option: Signal output
Bearing: Ball bearing or Sleeve bearing


92x20mm Brushless DC12V/24V PC Fan For Server 0


Model Rated Voltage (DCV) Operating Voltage (DCV) Rated input (W) Rated Operating Storage Temperature (°Q Speed (RPM) Max, Air Flow (CFM) Max, Aire Pressure Noise (DB) Bearing Type Weight
Current (A) Temperature
CHB9212A 12   1.44 0.12 -10-70 -40-70 2100 31.8 1.18 24 SB 71
CHB9212B 12 6-13-8 1.92 0.16 -10-70 -40-70 2500 38.1 2.6 28 B/SB/S 71
CHB9224B 24 12-26.4 2.88 0.12 -10-70 -40-70 2500 38.1 2.6 28 B 71
CHB9212C 12 6-13-8 3.12 026 -10-70 -40-70 3000 47.66 3.48 32   71
CHB9224C 24 12-26.4 432 0.18 -10-70 -40-70 3000 47.66 348 32 B 71
CHB9212D 12 6-13 3.84 0.32 -10-70 -40*70 3600 57.54 4.2 38   71

About us

Everrich Electronic(Dong Guan)Co.,Ltd, a subsidiary of Cheng Home Electronics Co.,Ltd, is the Taiwan based enterprise which is specialized in designing and manufacturing of DC brushless fans and motors. The company was established in Oct.1985. It has been 30 years experience of professional design and manufacture of DC fans, motors. We use advanced auto production equipment and testing machines,and we have senior professional & manager and technique power is strong.

We have continuously made all series of DC brushless fans from size 25mm to 172mm,and thickness from 6mm to 50mm. We would like to establish a partnership with each customer by developing any kind of fan and motor for customers special needs in PCs,desktop computers,telecom,car,projector,copy machine,fragrance lamp and industrial,medical,home application and other equipments.

We produce high efficiency,quality and stability. Our fans low noise,high airflow,long life.We have passed many domestic / international professional certificate such as CCC,UL,TUV. The product are sold to USA, Japan, Korea, South-east Asia and Hong Kong etc. around the world. Besides, we have a cooperation with world famous companies. In order to always keep in the leading position in the world, we continually import equipment,develop new product and create new market.
