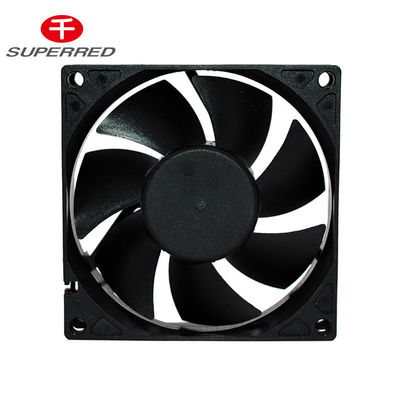

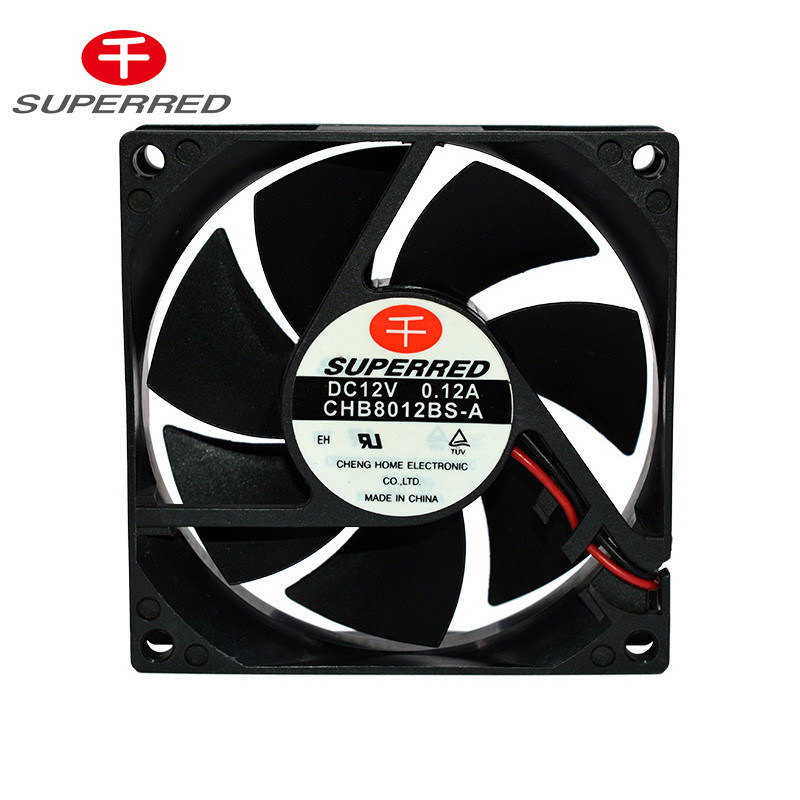

TUV Cheng Home Sleeve Bearing DC Brushless Fan 12v

TUV Cheng Home Sleeve Bearing DC Brushless Fan 12v

Product Details:

Place of Origin: China
Brand Name: Cheng Home
Certification: UL TUV
Model Number: B8012-XX

Payment & Shipping Terms:

Minimum Order Quantity: 2000 pcs
Price: USD1.00-8.00 per piece
Packaging Details: cartons on pallets
Delivery Time: 4-6 weeks
Payment Terms: T/T
Supply Ability: 200-400K pieces per month
Get Best Price Contact Now

Detail Information

Material: PBT Samples: Available
Option: Signal Output Bearing: Ball Bearing Or Sleeve Bearing
Name: DC Brushless Fan Voltage: 12v
High Light:

TUV DC Brushless Fan 12v


Cheng Home DC Brushless Fan 12v


Sleeve Bearing DC Brushless Fan 12v

Product Description

Product Information
DC cooling fans use direct current. That is, the electricity moves in only one direction. DC fans do not consume as much energy as AC fans, due to their lower voltage. Another benefit of DC fans is that they do not generate much electromagnetic interference. Electromagnetic interference is a disruption in electrical circuitry that can affect performance by causing a loss of data. DC cooling fans typically last longer and have a less complicated design than AC fans. The flow on a DC fan usually changes based on the input voltage.

When choosing a cooling fan, it is recommended to keep in mind the type of voltage that is needed. Higher voltages are more powerful, but it may not be necessary for certain applications. The type of application will also be a factor on other characteristics. For example, a cooling fan used in a medical office would need to be quieter than one used in a more industrial environment. Before this DC fan is mounted, it is recommended that the intended device be turned off and unplugged to avoid potential injury or damage to the machine.




80x80x20 mm

0.64~1.07 m3/min



Frame Plastic PBT 94V0

lmpeller Platic PBT 94V0

Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007

Option Signal output

Bearing:Ball bearing or Sleeve bearing


TUV Cheng Home Sleeve Bearing DC Brushless Fan 12v 0




Model Rated Voyage (DCV) Operating Voltage (DCV) Rated input (W) Rated Current (A) Operating Temperature (°. Storage Temperature | (°C) Speed (RPM) Max. Air Flow (CFM) Max. Aire Pressure (mmHjO) Noise (DB) Bearing Type Weight (g)
CHB8012A 12 6-13.8 1.08 0.09 -10-70 -40-70 2100 22.4 1.52 25 B/S 62
CHB8012B 12 6-13.8 1.44 0.12 -10-70 -40-70 2500 26.9 2.1 29 S/SB/B 62
CHB8012C 12 6-13.8 2.04 0.17 -10-70 -40-70 3000 32.5 3.02 34 B/S 62
CHB8012D 12 6-13.8 3.6 0.3 -10-70 -40-70 3600 37.7 4.02 39 S/B 62


About us

Everrich Electronic(Dong Guan)Co.,Ltd, a subsidiary of Cheng Home Electronics Co.,Ltd, is the Taiwan based enterprise which is specialized in designing and manufacturing of DC brushless fans and motors. The company was established in Oct.1985. It has been 30 years experience of professional design and manufacture of DC fans, motors. We use advanced auto production equipment and testing machines,and we have senior professional & manager and technique power is strong.

We have continuously made all series of DC brushless fans from size 25mm to 172mm,and thickness from 6mm to 50mm. We would like to establish a partnership with each customer by developing any kind of fan and motor for customers special needs in PCs,desktop computers,telecom,car,projector,copy machine,fragrance lamp and industrial,medical,home application and other equipments.

We produce high efficiency,quality and stability. Our fans low noise,high airflow,long life.We have passed many domestic / international professional certificate such as CCC,UL,TUV. The product are sold to USA, Japan, Korea, South-east Asia and Hong Kong etc. around the world. Besides, we have a cooperation with world famous companies. In order to always keep in the leading position in the world, we continually import equipment,develop new product and create new market.
