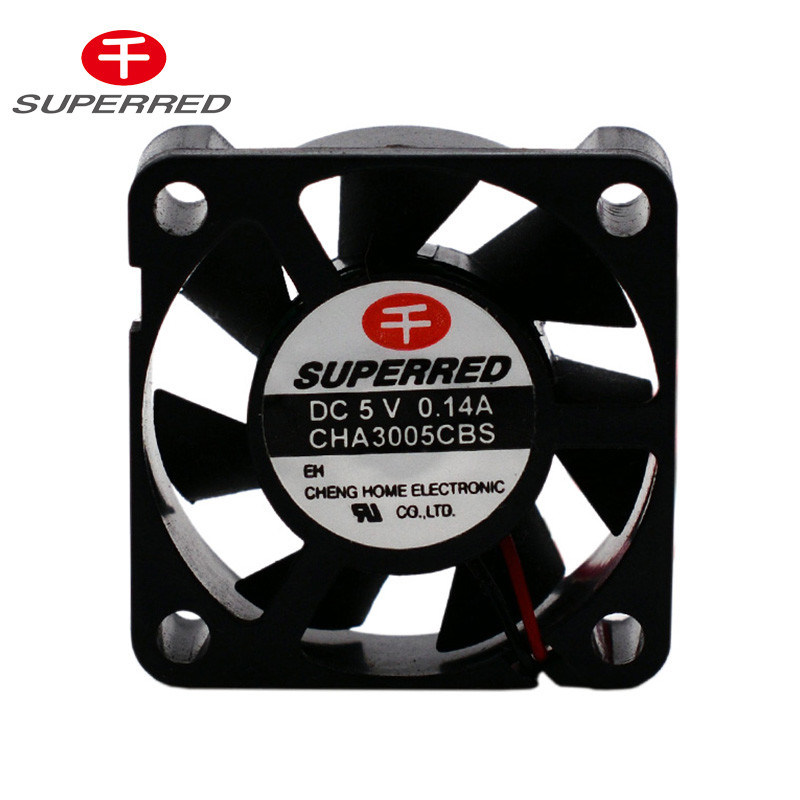

Cheng Home 8g 30x10mm DC Brushless Server Rack Fan
Product Details:
| Place of Origin: | China |
| Brand Name: | Cheng Home |
| Certification: | UL TUV |
| Model Number: | A30XX-XX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2000 pcs |
|---|---|
| Price: | USD1.00-8.00 per piece |
| Packaging Details: | cartons on pallets |
| Delivery Time: | 4-6 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 200-400K pieces per month |
|
Detail Information |
|||
| Product Name: | DC Brushless Fans | Frame:: | Plastic PBT 94V0 |
|---|---|---|---|
| Impellen: | Plastic PBT 94V0 | Lead Wire:: | AWG26 "+" Red "-" Black Standard UL 1007 |
| Option:: | Signal Output | Size: | 30x30x10 Mm |
| High Light: | 30x10mm Server Rack Fan,DC Brushless Server Rack Fan,8g Server Rack Fan |
||
Product Description
A30XX-XX
30x30x10 mm
0.061-0.12 m3/min
Material
Frame: Plastic PBT 94V0
Impellen Plastic PBT 94V0
Lead Wire: AWG26 "+" Red "-" Black Standard UL 1007
Option: Signal output
| Model | Rated Voltage (DCV) | Operating Voltage (DCV) | Rated input (W) | Rated Current (A) | Operating Temperature (°C) | Storage Temperature (°Q | Speed (RPM) | May Air Flow (CFM) | Max. Aire Pressure (mmH20) | Noise (DB) | Bearing Type | Weight (g) |
| CHA3005A | 5 | 3-6.5 | 0.25 | 0.05 | -10-70 | •40-70 | 5000 | 2.15 | 1.85 | 15 | SB | 8 |
| CHA3012A | 8-13.2 | 0.48 | 0.04 | -10-70 | -40-70 | 5000 | 2.15 | 1.85 | 15 | SB | ||
| 12 | 7-13.2 | 0.48 | 0.04 | -10-70 | -40-70 | 5000 | 2.15 | 1.85 | 15 | B | 8 | |
| 12 | 10-13.2 | 0.48 | 0.04 | -10-70 | -40-70 | 5000 | 2.15 | 1.85 | 15 | S | ||
| CHA3005B | 5 | 3-6.5 | 0.5 | 0.1 | -10-70 | •40-70 | 7000 | 3.17 | 2.64 | 21 | SB | 8 |
| CHA3012B | 12 | 7-13.2 | 0.84 | 0.07 | -10-70 | -40-70 | 7000 | 3.17 | 2.64 | 21 | S/SB | 8 |
| 12 | 6-13.2 | 0.84 | 0.07 | -10-70 | -40-70 | 7000 | 3.17 | 2.64 | 21 | SB | 8 | |
| CHA3005C | 5 | 3-6.5 | 0.7 | 0.14 | •10-70 | •40-70 | 9000 | 4.22 | 3.77 | 28 | s | 8 |
| 5 | 33-6.5 | 0.7 | 0.14 | -10-70 | -40-70 | 9000 | 4.22 | 3.77 | 28 | SB/B | 8 | |
| CHA3012C | 12 | 7-13.2 | 1.2 | 0.1 | -10-70 | -40-70 | 9000 | 422 | 3.77 | 28 | SB |
8 |
About us
Everrich Electronic(Dong Guan)Co.,Ltd, a subsidiary of Cheng Home Electronics Co.,Ltd, is the Taiwan based enterprise which is specialized in designing and manufacturing of DC brushless fans and motors. The company was established in Oct.1985. It has been 30 years experience of professional design and manufacture of DC fans, motors. We use advanced auto production equipment and testing machines,and we have senior professional & manager and technique power is strong.
We have continuously made all series of DC brushless fans from size 25mm to 172mm,and thickness from 6mm to 50mm. We would like to establish a partnership with each customer by developing any kind of fan and motor for customers special needs in PCs,desktop computers,telecom,car,projector,copy machine,fragrance lamp and industrial,medical,home application and other equipments.
We produce high efficiency,quality and stability. Our fans low noise,high airflow,long life.We have passed many domestic / international professional certificate such as CCC,UL,TUV. The product are sold to USA, Japan, Korea, South-east Asia and Hong Kong etc. around the world. Besides, we have a cooperation with world famous companies. In order to always keep in the leading position in the world, we continually import equipment,develop new product and create new market.
